s series 120w street lamp-01

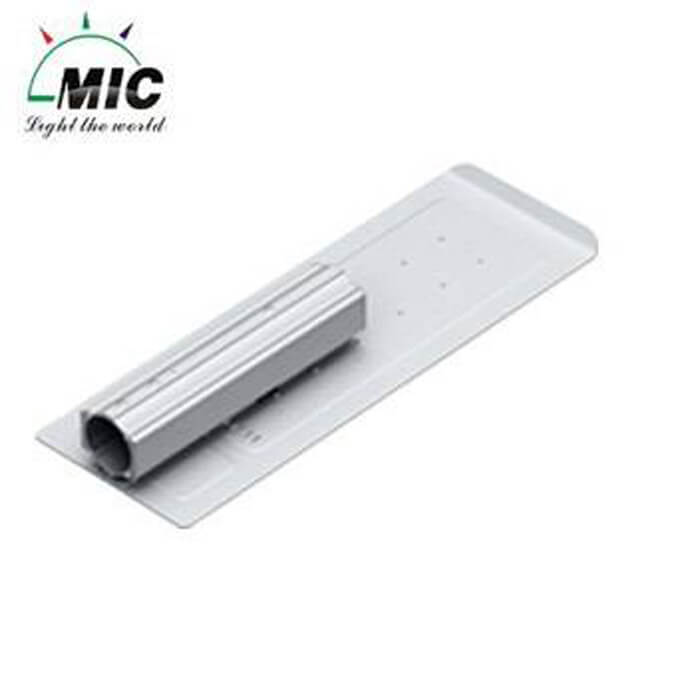

s series 120w street lamp-02

S Series 120w Street Lamp

Min. Order Quantity: 100pcs

Quick info

Since the establishment of our own brand MIC LED, with strong R&D capacity, professional technical team and rich experience in the industry, we launch new products beyond the customers' expectation every year, which always lead the industry trend.

  • Lamp Materials: Aluminum heat sink + Optical Lens
  • Lamp Lifetime: >50000h
  • IP Rating: IP67
  • Power Factor: >0.95
Prev Quote Now Next
  • Description
  • Additional Information

s series street light-detail-1

Features

  • Adopting integrated design of driver box and arm., so the shade is compact and elegant.
  • With instant startup and cozy lighting output, it is ensured with excellent performance.
  • Also long lifespan, high efficiency and economic in cost make it an environmentally friendly product.
  • With two specifications of the light pole’s back cover.
  • ø60mm and ø40mm, with a protection grade reaching IP67
  • Light weight, installation and maintain easily.
  • It can withstand a level 17 hurricane.
  • low cost and high quality, highly cost effective.
  • It is applicable on occasions like roads in countryside, park and residential area.

Application

1. The use of the whole aluminum lamp cooling technology, perfect and efficient solution to the problem of LED cooling, a large range of light source.
2. Anti-dust and anti-staying water design, reduce the maintenance of cleaning up the pressure, suitable for outdoor environment.
3. The design of the shape and structure of the ultra-thin patent, which is convenient for storage and transportation and maintenance.
4. Protection level of IP67.
5. The 5 shell of the paint and anodizing, strong corrosion resistance.
6. Widely used in trunk roads, highways, elevated roads, urban streets, bridges, sidewalks and other road lighting, as well as square, schools, residential areas, industrial parks, parks, and other outdoor lighting.

Item 120w LED street light
Model No. MSL-S120
Power Consumption 120W
Lamp Lumen >14400lm
LED Brand Osram 3030 LEDs
LED Lumen 140-160lm/w
Input Voltage AC85-277V, 50-60Hz
Power Factor >0.95
Color Temperature 2700-6500K
Installation Type Screw fixed installation
Light Beam 140 degree in horizontal, 60 degree in vertical
THD <15%
Color Rendering Index >80
Lamp Materials Aluminum heat sink + Optical Lens
Lamp Lifetime >50,000hours
IP Rating IP67
Net Weight (Kg) 11.5
Product Size (mm) 632*215*90mm
Application Street lighting, road lighting, square lighting
