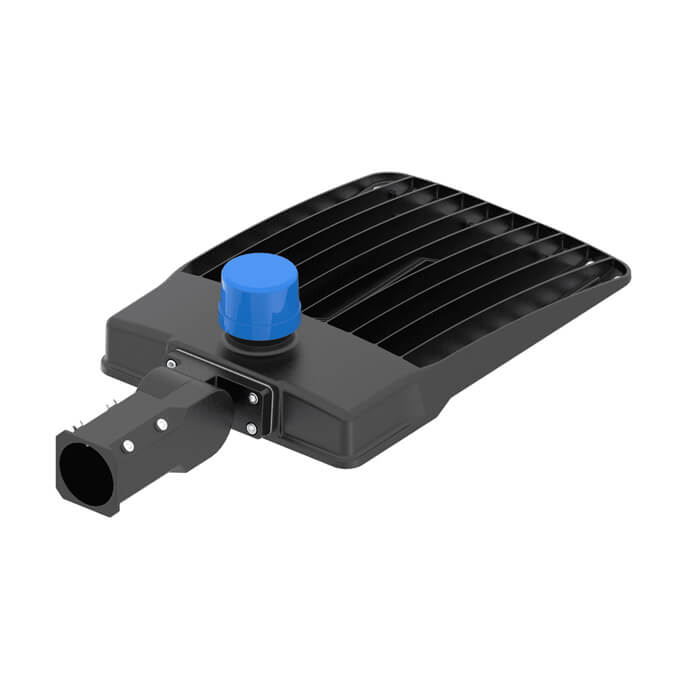

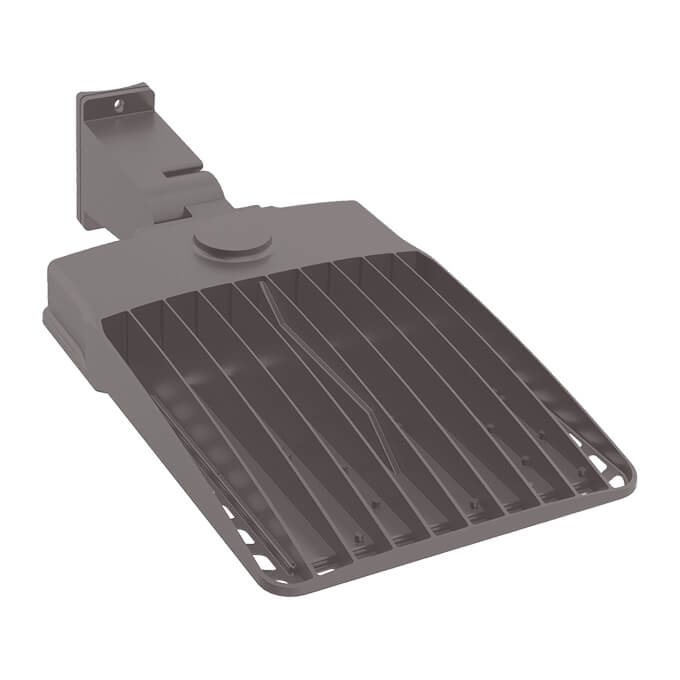

d series 200w led street light-01
d series 200w led street light-02
d series 200w led street light-03

D Series 200w LED Street Light

Min. Order Quantity: 100pcs

Quick info

Since the establishment of our own brand MIC LED, with strong R&D capacity, professional technical team and rich experience in the industry, we launch new products beyond the customers' expectation every year, which always lead the industry trend.

  • Lamp Materials: Die-casting Aluminum + PC
  • Life Span: 50000h
  • Guarantee: 3 years
  • IP Grade: IP66
Prev Quote Now Next
  • Description
  • Additional Information

d series street light-detail-1

d series street light-detail-2

Features

1. Universal voltage AC100-277V 50/60Hz.
2. 130lm/W for the fixture.
3. Using high quality SMD3030 chips.
4. Driver.
5. High Power Factor >0.9, Low THD Driver.
6. Simple black appearance, surface anodized, without fading and corrosion.
7. Excellent Optics design, greatly improve light utilization and evenness.
8. Available with 0-10V Dimmable, Photocell sensor, Microwave motion sensor.
9. Dust-proof and waterproof, IP65.
10. 5 Years Warranty.

d series street light-detail-3

High luminous efficiency, up to 130lm/W;high quality PC material lens, type Ⅲ, type Ⅴ beam angle available, no glare.

d series street light-detail-4

Standard Photocell NEMA connector, automatically switches a light on at dusk and off at dawn. Which can save your energy.

d series street light-detail-5

LED shoebox light could connect with Microwave Motion Sensor, function requirements of the detection area, time delay
and daylight threshold can be precisely set via DIP switch.

d series street light-detail-6

Fashionable streamline appearance, waterproof IP65, and die-casting aluminum fin design with good heat dissipation performance prolong the lifetime of LEDs.

d series street light-detail-7

d series street light-detail-8

Model NO. MSL-D100 MSL-D150 MSL-D200
Power 100W 150W 200W
NW/Size 4.7kg/543*317*75mm 4.8kg/543*317*75mm 5.6kg/663*317*75mm
Luminous Flux >13000LM >19500LM >26000LM
Model NO. MSL-D240 MSL-D300
Power 240W 300W
NW/Size 6kg/663*317*75mm 6.8kg/785*317*84mm
Luminous Flux >31200LM >39000LM
Beam Angle TYPE Ⅱ, TYPE Ⅲ, TYPE Ⅴ IP Grade IP66
CCT 2700-6500K PF Rate >0.95
Material Die-casting Aluminum + PC CRI >70
Life span 50000h LED lamp SMD 3030
Luminous flux 130lm/w Guarantee 3 years
