30w led flood light-01
30w led flood light-02

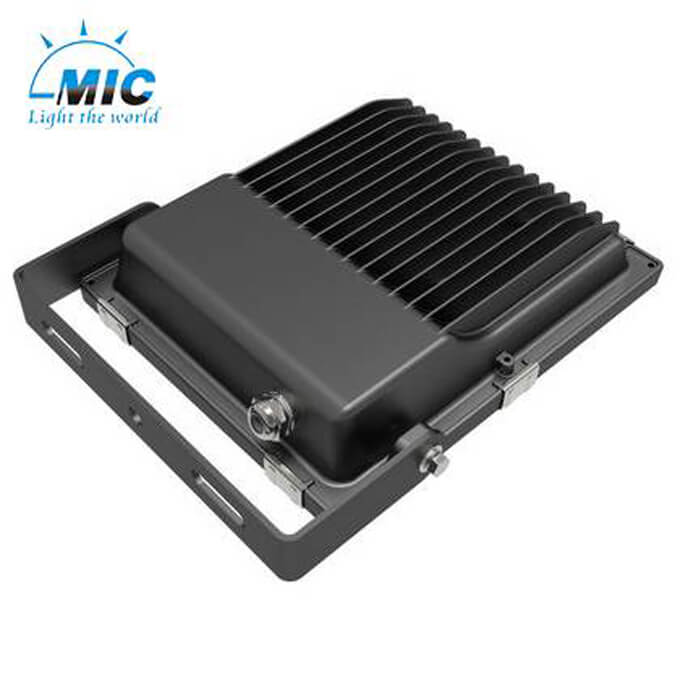

30w LED Flood Light

Min. Order Quantity: 100pcs

Quick info

Since the establishment of our own brand MIC LED, with strong R&D capacity, professional technical team and rich experience in the industry, we launch new products beyond the customers' expectation every year, which always lead the industry trend.

  • Working Voltage: AC90-300V
  • LED Lamp Life: 50, 000hrs
  • IP Grade: IP65
  • Power Factor: >0.95
Prev Quote Now Next
  • Description
  • Additional Information

30W LED Flood Lights, 2250lm, Daylight White, 75W HPS Bulbs Equiv, IP66 Waterproof Security Lights

MIC-LED Is LED Flood Light adopts integrated high-power imported LED as light source, which has high luminous efficiency (120-140lm/W). With advanced constant current and voltage control techniques, MIC-LED’s LED Flood Light is universal AC input, driven by constant voltage and constant current, together with the protection of over-voltage, over-power, over-current, over-temperature, and short circuit.

Features / Advantages

  • Ultra-slim sleek design, stylish and classic
  • Excellent comprehensive performance of Heat Dissipation, Anti-corrosion
  • Reflector and heat sink integrated, pure aluminum structure for heat dissipation
  • Better luminance, Wider lighting area
  • Special Protection Types: Over-voltage, Over-power, Over-current
  • Energy Saving: up to 70% than conventional high bay light
  • IES document available
  • Input Voltage: AC90~265V 50-60Hz
  • Power Efficiency: >9%
  • Power Factor: >0.96
  • High Color Rendering Index (CRI): Ra>80
  • Long lifespan: over 5-6 years (equivalent to Keep working 50, 000 hours)
  • CE, ROHS compliance

Sufficient Brightness

Its brightness is up to 2250 lumen, fully meet your lighting needs. No shadow, dizzy light, providing you excellent bright light.

Energy Efficient

More energy efficient than old halogen lamp, great replacement for 75W HPSL. Saving over 60% on your electricity bill.

Wide Beam Angle

120° beam angle, providing you with a wide illumination range.

Usage Recommendation

General lighting: illumination area is 20-30 sq. m. with about 75-150 lux when installation height is 4-6 meters.
Outdoor light: illumination area is 30-40 sq. m. with about 50-75 lux when installation height is 5-7 meters.

Durable

With a fully aluminum alloy Die-casting case, this flood light has excellent heat dissipation, which effectively prolongs its lifespan. By adopting tempered glass, the panel is much more durable.

Flexible Installation

It comes with a metal bracket on the lamp body, allowing you to install the light flexibly, including ceiling-mounted, wall-mounted, and ground-mounted. The lamp body can be adjusted 150°, flexible enough to meet your lighting requirements.

Wattage 30w
Luminous flux 2250 lumen/1950 lumen
Light color Daylight white/Warm white
IP rating IP66
Material Aluminum + Tempered Glass + Iron
Dimension 225*225*50mm
Leading wire 30 cm (plug not provided)
Package Includes 1x30w 2250lm Daylight White LED Flood Light

Note

1. The LED Floodlight can be attached directly to an electrical outlet box.
2. The correct connection of the wire: The blue line and brown line of the lamp separately into the Neutral line and Live line of the mains supply. The yellow-green ground wire must be earthed. Pls have a check and make sure that all the wires are fastened tightly.

More Recommendation

If you plan another lighting project in your home or commercial places, you can also find other LE flood lighting products in our store. A variety of wattages, colors, and other configurable functions (motion sensor, remote controlling, solar-powered, plug-in, rechargeable, portable, etc.) are all available!

How to Install 30w LED Floodlight

1. Drill mounting holes according to the screw bits in the lamp bracket.
2. Attach the bracket and screw on to make it into position.
3. Adjust the lighting direction as you like.
4. Connect the power lead to the mains supply.

Product Name 30W led flood light
Model No. MFL-S30
Power Consumption 30W
Light Efficiency >100lm/w
Working Voltage AC90-300V
Power factor >0.95
LED Chip Philips 3030 LEDs
Color Redering Index >80
THD <15%
LED Lamp Life 50000hours
Certificate CE, ROHS, CUL, UL, DLC
Warranty 5 years
IP Grade IP65
Beam Angle 120°
Color Temperature Warm white: 2700-3500K
Pure white: 4000-4500K
Cool white: 5000-6500K
Housing Material Aluminum heat sink + tempered glass
Packing box 54*41*26CM, 20pcs/CTN
