30w c series led tunnel light-01
30w c series led tunnel light-02

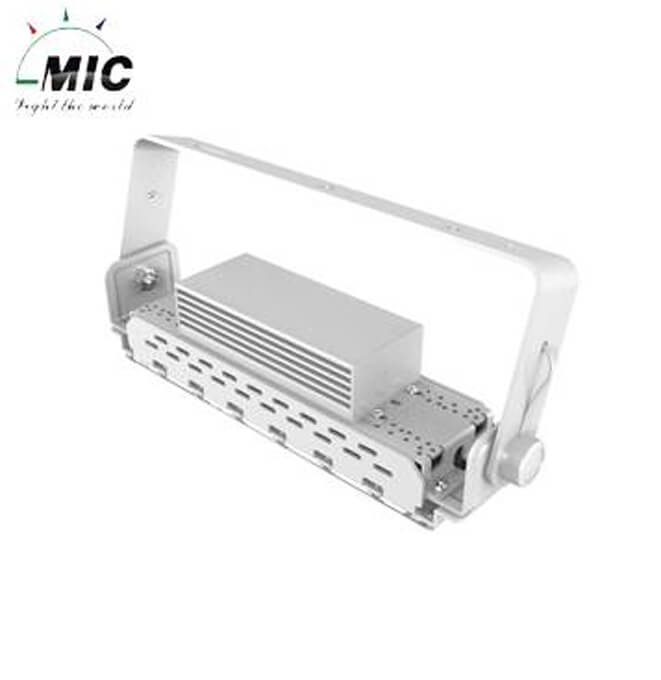

30w C Series LED Tunnel Light

Min. Order Quantity: 100pcs

Quick info

Since the establishment of our own brand MIC LED, with strong R&D capacity, professional technical team and rich experience in the industry, we launch new products beyond the customers' expectation every year, which always lead the industry trend.

  • Lamp Materials: Die-casting Aluminum + Optical Lens
  • Lamp Lifetime: >50, 000Hours
  • Power Factor: >0.95
  • IP Rating: IP67
Prev Quote Now Next: No Next Page
  • Description
  • Additional Information

Installation positions: backyard, swimming pool, garage, barn, fence, porch, garden, lawn, tennis field, football field, basketball field, campuses, stadium, GYM, shops, stall, restaurant, bar, car washes, parking lot, roadway, bike path, county yard, walk way, streetscapes, squares, buildings, airports, mines, work sites, factories and warehouses etc;

Installation guidance: you may use bracket or slip fitter to fix the flood lights.

Wire connection: Blue to White (Neutral Wire), Brown to Black (Phase Wire), Yellow to Green (Ground Wire).

You may noticed that all of our lights are with breath filter, which is a small thing, but it is vital for led flood lights. If you check the lights without breath filter, after several months use, there will be vapor on the inner surface of the glass, slowly it will grow some thin moss inside looking very bad and also reduce the output of the light. The breath filter allows hot air out and cool air in, while it stops the moisture in. Each row can be adjustable driver box with vent for better heat dissipation. More modules are available for higher power to 1000Watt.

Housing material of Modular Floodlight: The heat-sink are pure 6063 aluminum material. The driver box and the bracket part are galvanized with painting, double protection from corrosion. The whole housing can resist corrosion for at least 5 years even installed beside seas.

c series led tunnel light-detail-1

Product Name 30w LED tunnel light
Model No. MT-C30
LED consumptions 30w
LED Quantity 90pcs
LED luminous >130lm/w
Power Efficiency >90%
LED Chip Source Philips 3030
Power Factor >0.95
Input Voltage AC85-277V, 50-60Hz
Color Rendering Index (CRI) >80
Color Temperature Warm white (2700-3500K); Pure white (4000-5000K); Cool white (6000-6500K)
Total Harmonic Distortion (THD) <15%
Light Beam Angle 60°*60°, 90°*90° and 90°*100° optional
Lamp Materials Die-casting Aluminum + Optical Lens
Lamp lifetime >50, 000Hours
IP Rating IP67
Net Weight 4KG
Gross Weight 5KG
Product Size (mm) 417*330*109mm
Packaging Size(mm) 500*400*150mm
