150w led shoebox lights-01

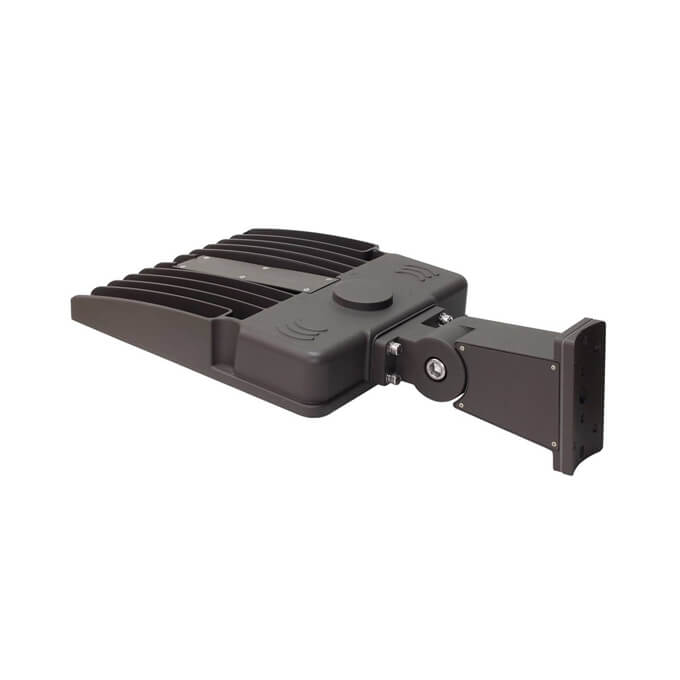

300w led shoebox lights-02
300w led shoebox lights-03

150w LED Shoebox Lights

Min. Order Quantity: 100pcs

Quick info

Since the establishment of our own brand MIC LED, with strong R&D capacity, professional technical team and rich experience in the industry, we launch new products beyond the customers' expectation every year, which always lead the industry trend.

  • Material: Aluminum + PC
  • Power Factor: >0.9
  • Input Voltage: 100-277Vac, 50/60Hz
  • IP Rated: IP65
Prev Quote Now Next
  • Description
  • Additional Information

LED shoebox light-detail-00

Application

LED Shoebox Lighting series can be widely used in Urban roads, Industrial areas, Residential areas, Sidewalks, Parking lot, Schools, Gardens and etc.

LED shoebox light-detail-01

Features

  • Universal voltage AC100-277V 50/60Hz.
  • 130lm/W for the fixture.
  • Using high quality SMD3030 chips.
  • driver.
  • High Power Factor >0.9, Low THD Driver.
  • Simple black appearance, surface anodized, without fading and corrosion.
  • Excellent Optics design, greatly improve light utilization and evenness.
  • Available with 0-10V Dimmable, Photocell sensor, Microwave motion sensor.
  • Dust-proof and waterproof, IP65.
  • 5 years Warranty.

LED shoebox light-detail-02

48 hours ageing & 100% QC testing before shipment. Guarantee the products 0 complain.

LED shoebox light-detail-03

Standard Photocell NEMA connector,automatically switches a light on at dusk and off at dawn.Which can save your energy.

LED shoebox light-detail-04

Led shoebox light could connect with Microwave Motion Sensor, function requiremnts of detection area, time delay and daylight threshold can be precisely set via DIP switch.
MC605V/D is an innovative and active motion detectors with HF system 5.8GHz.

Dimming Function

3-step dimming function

When used in combination with 1-10V dimmable LED drivers and ballasts, the sensors can achieve 3-step dimming
function, 100% —> low light—>off. And the sensors build in adjustable daylight sensors, very easy to install and
cost-effective.

2-step dimming function

Also, the sensors can provide 2-step dimming function, 100 %—> low light (Never turn off). They are particularly
suitable for use in Urban roads, Industrial areas, Residential areas, Sidewalks, Parking lot, Schools, Gardens where low light levels are maintained until motion is detected.

LED shoebox light-detail-05

About Us

Shenzhen Top-branded Enterprise and China Advanced Enterprise in Harmonious Labor Relations. We independently design and manufacture LED products ranging from High Power LED Street Light to the other LED lights, which qualify us to be one of the largest manufacturers, suppliers, and exporters of LED lighting and solar lights in China, as well as the leading provider in energy-saving solutions.

mic


mic-led-about

Why Choose Us

certifications

why choose us-1

1. We use Dialux software to simulate the luminous effect, so as to make sure our proposals meet clients' requirements.

2. Our PMC department follows the production and we can report to you at any time about the production by photos and videos.

why choose us-2

3. We have IQC, IPQC and OQC during the production, guarantee the products.

4. We have a large capacity and quickly finish the cargos in a short time with our experienced production team.

ST07-XX01
Power 150W Weight 6.2Kg
Lumen Output 19500lm Dimension 21.1"*12.4"*2.8" / 535*316*70mm
Efficacy 130lm/W Material Aluminu + PC
Color Temperature 3000K-6500K Operation Temperature -35°C ~ 55°C
CRI Ra>70 Finish Brown/Black
LED 3030 IP rated IP65
Beam Angle TYPE Ⅱ,TYPE Ⅲ,TYPE V Certificate DLC
Power Factor >0.9 Material Usage RoHS compliant
Input Voltage 100-277Vac, 50/60Hz Optional Accessory Photocell Sensor / Microwave motion sensor
THD <20%
